Horizontal
Ideal for lower height requirements, transporting product from one process to another, distributing product evenly without a change in elevation and more.

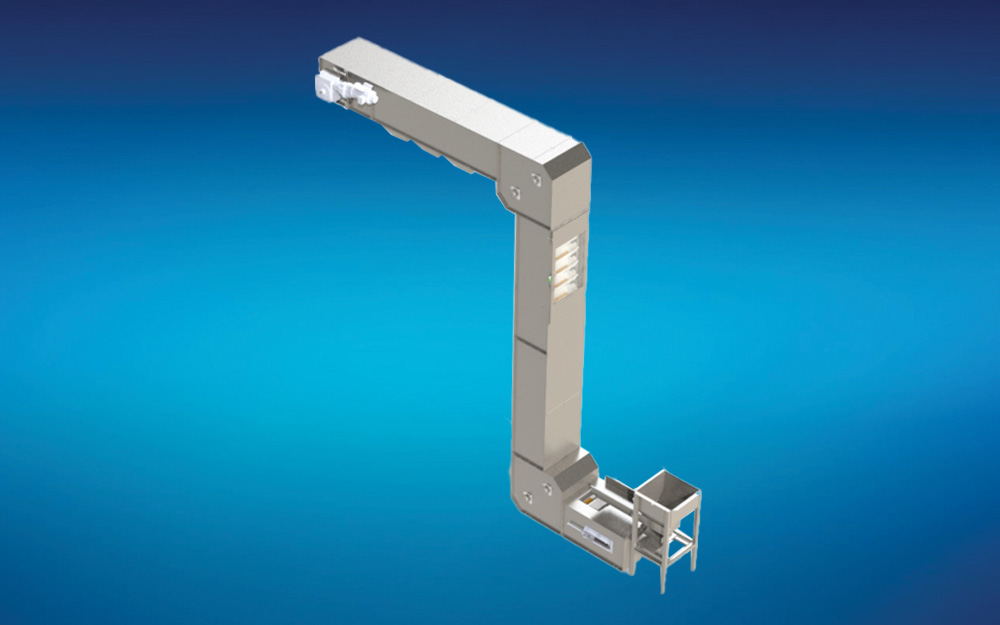

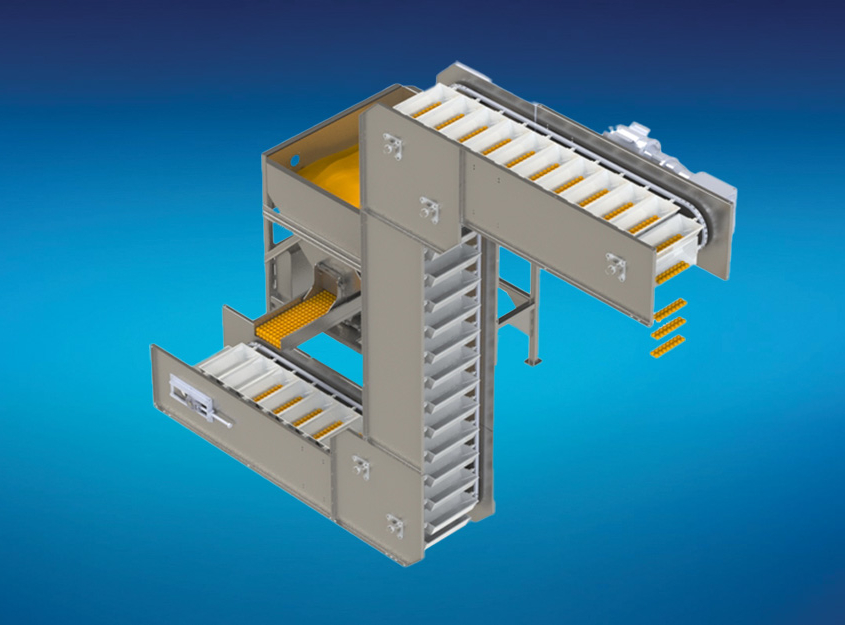

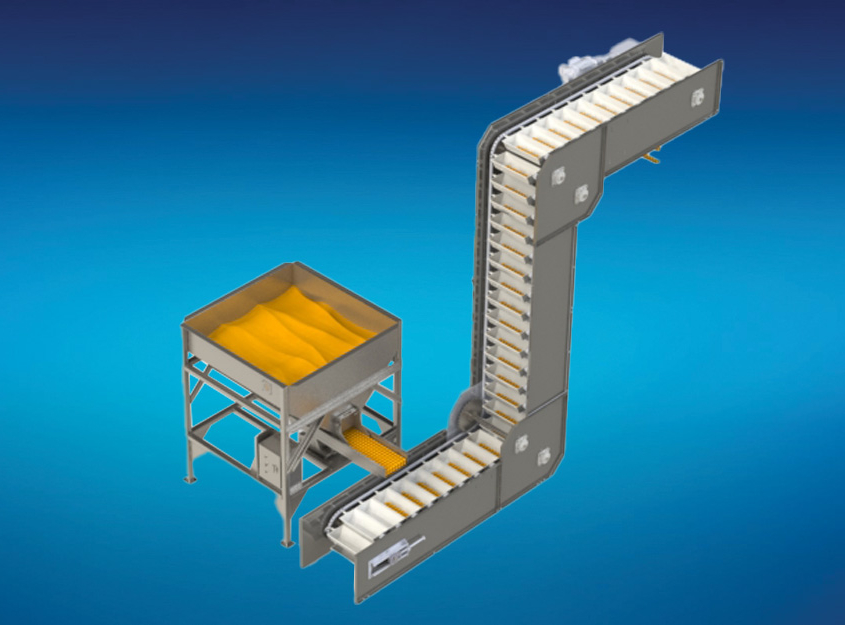

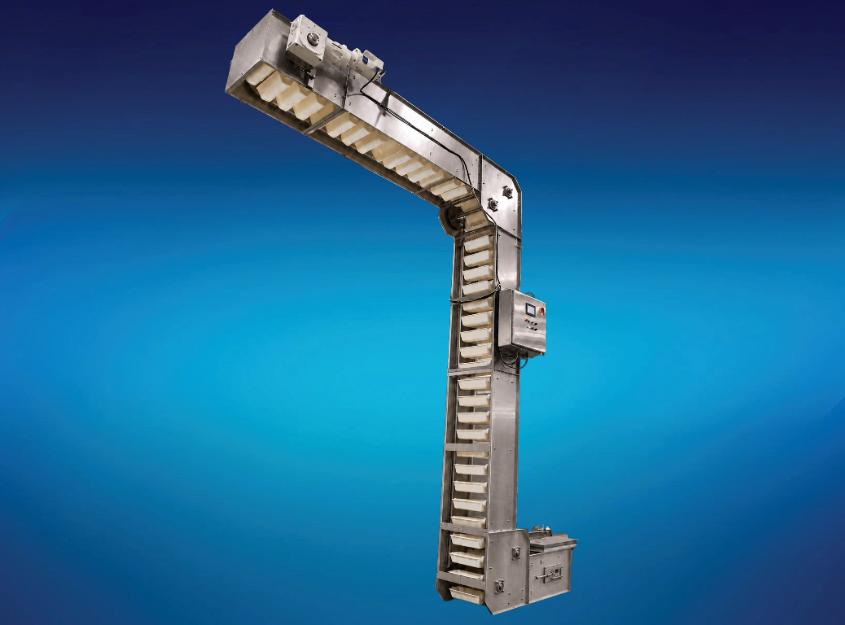

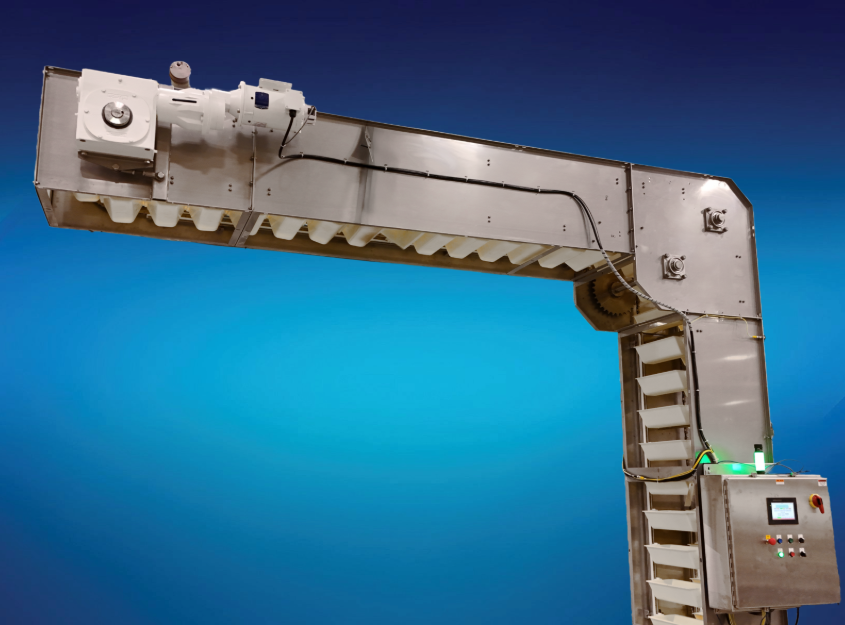

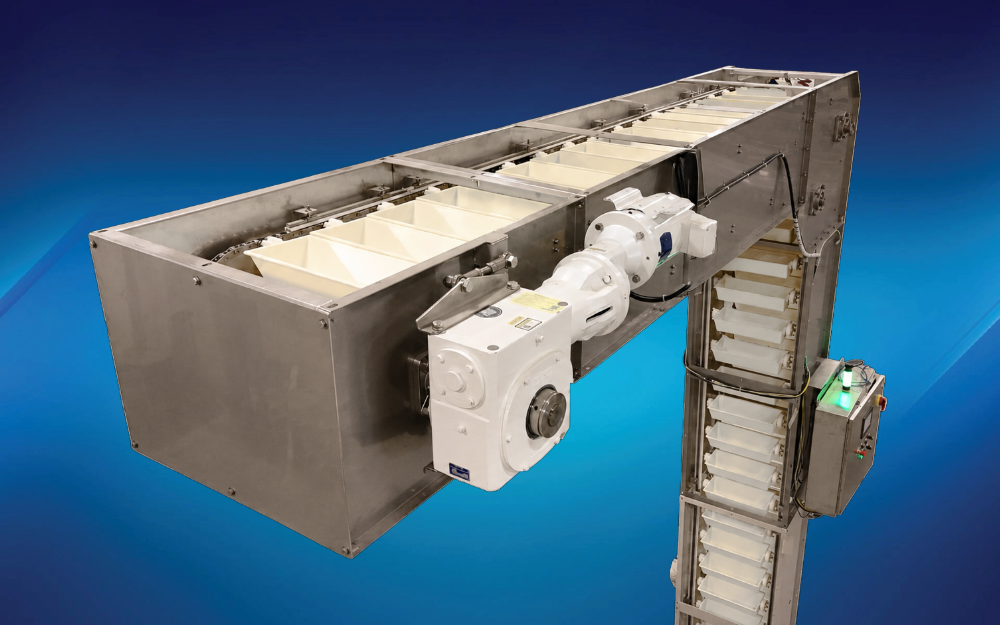

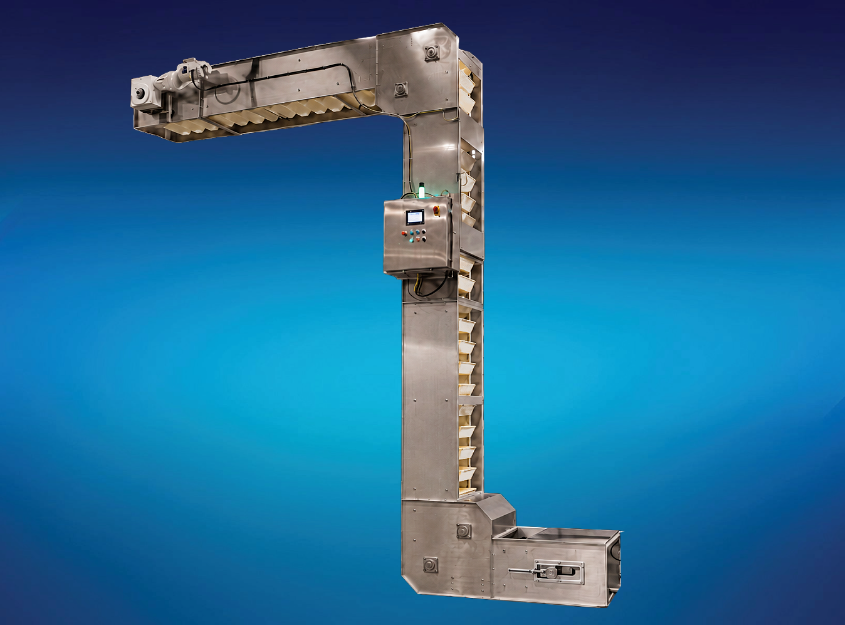

Triton Innovation’s food grade Pendulum Bucket Elevators simultaneously execute vertical and horizontal transportation of dry, free-flowing, bulk material within a small footprint. A continuous loop of buckets travel from one or more infeed points to as many discharge points as needed for a wide range of processing, production, or packaging lines. Bucket Elevators are also highly modular and have virtually limitless configuration possibilities that significantly simplify installation, integration with existing equipment, and provide ongoing flexibility to modify or customize layouts as required.
Allowing up to 90° incline, its design goes beyond other conveyor solutions. Buckets remain upright during transportation, overlap to provide superior containment, gently handle both fragile and non-fragile products, and maintain product blend integrity. Buckets are also designed for easy, tool-less removal and cleaning which is critical for batch and recipe changeouts. Our Bucket Elevators are designed to meet stringent quality standards and are capable of eliminating product fallback, degradation, damage, or loss.
Triton can design complete solutions that manage and prepare your product for the key stages of your operation. We can help you automate bulk bag or container unloading, controlled feeding and in-process storage, extra gentle conveying, and more. Get in touch with us to learn how.
Standard Packages
Note: All Food Contact Zones Include Stainless Steel Continuous Welds Which Are Coarse Ground & Cleaned (Infeed Guides, Top Covers, Sideguides & Bottom Pans)
- Hygienic Level I For Dry Environments – Non-Washdown Designs, Non-Washdown Carbon Steel Bucket Chain, Carbon Steel Frame/Leg Materials, FDA-H1 Lubricants, FDA Powder Coated Frame/Legs, NEMA-1 Electrical/Control Items, Stainless Steel Shafts with FDA Materials, Stitch Welded Frame/Legs, Non-Washdown Drive, Welds Cleaned but Not Ground, FDA Buckets
- Hygienic Level II For Dry To Wet Environments –Washdown Designs, Stainless Steel Washdown Bucket Chain, Stainless Steel 2B Mill Finish Frame/Leg Materials, FDA-H1 Lubricants, Stainless Steel Shafts with FDA Materials, NEMA-4X Electrical/Control Items, Epoxy Painted Washdown Drive, Stitch Welded Frame/Legs, FDA Buckets, Welds Cleaned but Not Ground
- Hygienic Level III For Dry To Wet Environments –Hygienic Open/Cleanable Designs, Stainless Steel Washdown Bucket Chain, Stainless Steel 2B Mill Finish Frame/Leg Materials, FDA-H1 Lubricants, Stainless Steel Shafts with FDA Materials, NEMA-4X Electrical/Control Items, Stainless Steel Washdown Drive, Continuously Welded Frame/Legs, FDA Buckets, Welds Coarse Ground & Cleaned, Clean-Out Ports in Sideframes

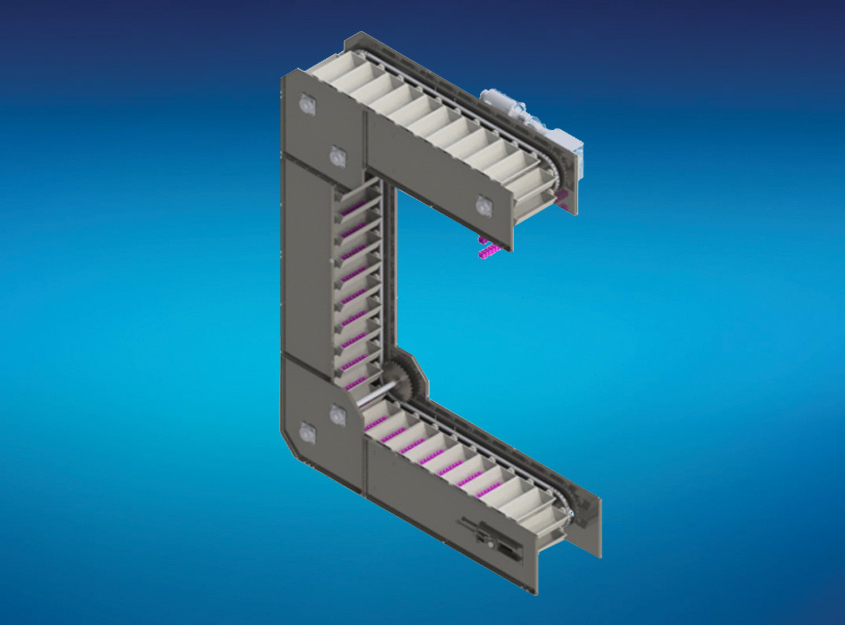

Standard Configurations
Explore our standard configurations below to see which may be best suited for your application. Additional configurations are available upon request.
